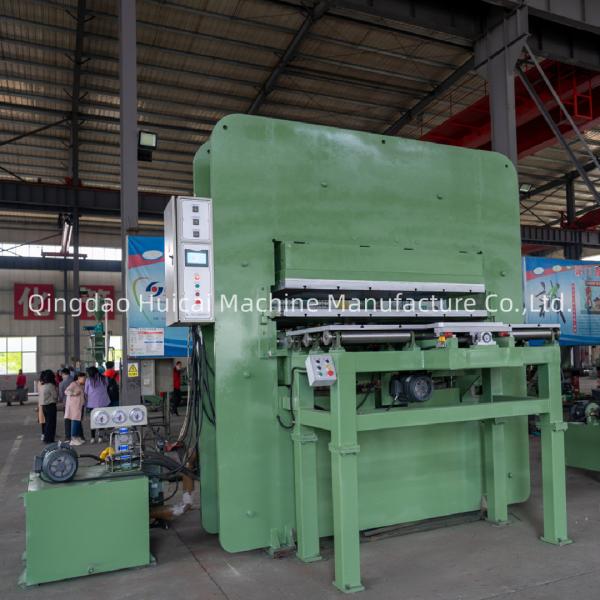

Rubber Carpet Vulcanizing Press Machine in Green/Blue with Plate Clearance of 400mm

Name: Rubber Carpet Vulcanizing Press Machine in GreenBlue with Plate Clearance of 400mm
Brand: HUICAI
Price: 10 USD

Wholesale Rubber Carpet Vulcanizing Press Machine in Green/Blue with Plate Clearance of 400mm from china suppliers

Place of Origin : Shandong, China

Brand Name : HUICAI

Type : Vulcanizer

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

Warranty of core components : 1 Year

Core Components : PLC, Pressure vessel, Pump

Tire Machine Type : Other Tire Machine

Voltage : 220V 380V

Dimension(L*W*H) : 2200x2200x2800 mm

Year : New

Warranty : 1 Year

Key Selling Points : Competitive Price

Power (kW) : 22.5 kW

Weight (KG) : 8000 KG

Applicable Industries : Rubber

Showroom Location : None

Color : green/blue

Main Motor Power (kW) : 22.5

Weight (kg) : 8000

Certification : CE ISO9001

Nominal Molding Power (MN) : 8.00

Working Layer Number : 2

Plate Size (mm) : 1600x700

Plate Clearance (mm) : 400

After-sales Service Provided : Engineers available to service machinery overseas

Heating Method : Electricity /Oil /Steam

Packaging Details : Nude packing or plywood case

Port : Qingdao

Supply Ability : 50 Set/Sets per Month

Price : $10,000.00/sets >=1 sets

MOQ : 1

Contact Now

Rubber Carpet Vulcanizing Press Machine in Green/Blue with Plate Clearance of 400mm

Product Description

About us-- Qingdao HUICAI Machine Manufacture Co., LTD. 1. has specialized in machine manufacture almost 20 years;(since 1996) 2.100% real manufacture meet all your requests; 3.CE,ISO Certification; 4.provide one year quality guarantee and long-term technical support; 5.provide all kinds of rubber machine: Vulcanizing machine,Rubber mixing mill,Rubber crushing mill,Rubber refining mill,Rubber plastices kneading machine,Rubber injection&pressure molding machine,Vaccuum heat presses to model the machine, Hydraulic press, Rubber sheeting mill,Jaw type falt vulcanizer,Prevulcanization equipment,Hydraulic tyre vulcanizer,Automatism inner tube press vulcanizer, Foaming press; Conveyor belt production line, Sidewall belt production line, Conveyor belt forming line; Batch-off cooler (cooling line); Rubber cutter etc; 6.our machine are welcome by the world,popular in lots of markets Notice: we can accept FOB,CIF,CFR,EXW,etc. Payment Item:30%TT in advance,70% balance before shipment. Delivery Time:usually 20-30 days after recieving the deposit,customize model depends on detailed parameter Packing:bare packing, some parts are packed in wooden case.

Machine Features: 1.compact structure, beautiful modelling and strong clamp force 2.Per working position can be heated to 180 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference 3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc

Machine Show

Main Frame

Using high-quality carbon steel plate Q235, welding forming structure. After eliminating stress, into the whole process.

Oil Cylinder

The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.

Push and Pull Device

Operation can be divided into manual and automatic.This type is manual.

Auxiliary Cylinder

The auxiliary cylinder can make the speed up,and can be high working efficiency.

Hydraulic Unit

Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.

Motor

The brand is kaiyuan or Siemens, which is famous and outstanding in motor making.

Hot Plate

Use 45#steel which after double scale rolling and normalizing and processing, every platen has 2 heating zones, each heating zone using a temperature measurement points.

Insulation Board

Insulation materials can be divided into resin,carbon fiber,Ultra-light calcium silicate and so on.

Double Sealings

Seal structure uses imported dual channel o-ring, and increase a dust-proof to ensure that long-term and no leaking oil.

Piston

The material is alloy chilled cast iron, which ensures long-term use.

PLC

The brand is Siemens,Taida or Mitsubishi.Electronic control system is by PLC programmable controller, HMI, control cabinets and other components.

Electricity Box

The main parts from zhengtai brand,and we can offer Schneider if you need.

Certifications

Our Service

Why choose our company?

Qingdao Huicai Machinery Manufacturing Co., Ltd. is an export-oriented enterprise based on Qingdao Jiaonan Huicai Rubber Machinery Factory. Founded in October 1996, we have over ten years' history in manufacturing rubber machinery. We can provide all technical support, best after-sell service for all you require.

1) AAA grade credit enterprise and Ce and ISO 9001

2) With 14 years experience in manufacturing rubber machines has become one of the biggest company in China.

3) Exported to more than 20 contries with good quality. Example: The good year company in Chile.

Management Concept: Survive by Quality, Develop by Credit, Innovate by Technology, Improve by precision.
Times Concept: People Oriented, Scientific Development, Advance with Times, Innovative creation.
Work Concept: Hardworking Practical, Conscientious and Meticulous.

Packing & Delivery

Customer visting and acceptance:

Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

1.Q:Are you a factory or trading company?
A:We are factory.
2.Q:Where is your factory?How can i visit ?
A:Our factory located in qingdao city.You can fly to qingdao liuting airport,then we can pick you up to our facotry to visit.Warm welcome to visit us.
3.Q:How does your factory control the quality of machines and after sales service?
A:Our machines passed CE,ISO,SGS certification,pls confirm the quality.All our machines have 1 year guarantee, will provide lifetime maintenance.
4.Q:What's your payment term?
A:30% TT in advance, 70% TT before shipment Or L/C at sight.
5.Q:Can you design new product for us?
A:we have a professional development team that make new products according to your requirements.
